By John Jordan

Cover of 100 Things You Should Know About Controlling with SAP by John Jordan Explore practical SAP Controlling (CO) tips for cost center accounting, internal orders, profit center accounting, and product cost planning. This page includes excerpts for the first 19 tips and the full table of contents.

My SAP PRESS book 100 Things You Should Know About Controlling with SAP includes step-by-step instructions and screenshots. The second edition contains 110 tips, including 10 bonus tips.

Free Sample Tips

The excerpts use classic SAP ERP transactions and screens. For S/4HANA-specific guidance, see SAP Product Cost Controlling in S/4HANA.

PART I: Cost Center Accounting

We'll first explore 11 tips for Cost Center Accounting, including working with the standard hierarchy, planning, price calculation, and target cost and variance analysis.

1 Maintain Standard and Alternate Hierarchies

You can easily maintain standard and alternate cost center hierarchies for flexible reporting.

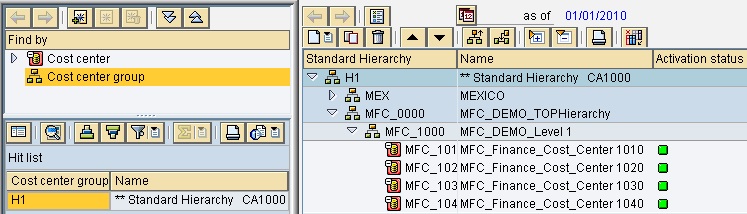

Figure 1: Cost Center Standard Hierarchy

The cost center standard hierarchy usually represents your company's structure; you use it most often in your reporting. This is because the standard hierarchy, guaranteed to contain all the cost centers in a controlling area, is easily maintainable. An example of a cost center standard hierarchy is shown in Figure 1. While alternative hierarchies offer more flexible reporting, you can only maintain them with a transaction that has less functionality.

2 Swap the Standard Hierarchy

If you use an alternate hierarchy more than the standard hierarchy, you can swap them by maintaining the Controlling Area as shown in Figure 2.

02 001

Figure 2: Maintain Controlling Area

The simplest solution is to copy the alternate hierarchy as a node directly under the standard hierarchy and then delete the other existing nodes. However, if you attempt to create the alternate hierarchy as a node directly under the standard hierarchy, you'll receive an error message stating that the cost center group already exists. This tip provides a procedure for streamlining the changeover.

3 Assign Cost Element Default Account

Maintaining cost element master data in ECC and R/3, as shown in Figure 3, allows you to assign a default account quickly.

03 001

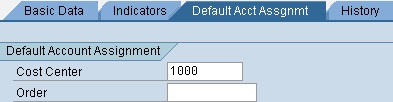

Figure 3: Default Account Assignment

When posting to Controlling (CO), you need to assign a cost object, such as a cost center or order. You assign a default object so that you don't have to enter every expense posting manually.



Watch Paul Ovigele discuss the book during his Keynote: SAP Controlling Financials Conference:




4 Automatic Account Assignment

You can make default cost center assignments per plant with automatic account assignment with transaction OBYC.

Automatic account assignment lets you enter a default cost center per primary cost element for each plant. Automatic assignment occurs during postings in external accounting modules (such as Financial Accounting, Materials Management, and Sales and Distribution) if you don't enter an automatic account assignment object (such as a cost center or order) during a cost accounting-relevant posting.

We look at how to set a default account assignment as shown in Figure 4.

03 001

Figure 4: Automatic Account Assignment Configuration

 Continue reading: 100 Things You Should Know About Controlling with SAP

5 Plan Activity Price with Activity Type Group

When entering plan activity prices, you can filter the price-planning screen with activity type groups to display only the activities you work with.

Activity type groups allow you to limit the types of activities displayed when planning activity prices with Transaction KP26. When planning activity prices, you enter an individual activity type, range, or group in the initial selection screen, as shown in Figure 5.

05 002

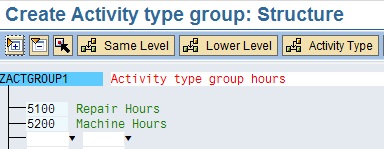

Figure 5 Create Activity Type Group

6 Copy Cost Center Plan

You copy cost center plans from year to year and version to version with a standard transaction.

 2361 06 030



When you create next year's cost center plan, you may want to copy the current year's plan to next year and make the necessary adjustments. You can do this by copying and changing actual data to plan data with standard transactions, as shown in Figure 6. We look at the details of these standard transactions. You copy the cost center plan data with Transaction KP97, which displays the screen shown in Figure 6.

 06 001

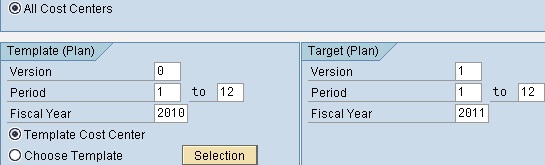

Figure 6: Cost Center Copy Plan to Plan

 Select the Template Cost Center to copy from a cost center on a 1:1 basis. If you'd like to copy from one cost center to multiple cost centers, select Choose Template and click the template cost center.

The selection screen settings in Figure 6 will copy all cost center plan data from Version 0, Fiscal Year 2010, to Version 1, Fiscal Year 2011. You can modify the plan data in Version 1 for Fiscal Year 2011, and when finalized, you can copy from Version 1 Fiscal Year 2011 to Version 0 Fiscal Year 2001.



7 Plan Cost Splitting

You can allocate cost center costs across activities using two different methods.

During plan cost splitting, the system splits the activity-independent costs of a cost center among its activity types. Plan costs are split automatically during plan price calculation. First, let's look at activity-dependent and activity-independent costs, as shown in Figure 7, and then we'll see how the costs are split.

07 001

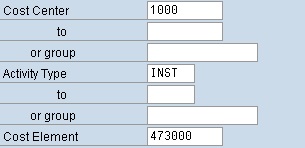

Figure 7: Cost Element Planning Selection

8 Actual Price Calculation

The system automatically calculates prices for activity types based on actual costs and actual activities.

You allocate cost center under/over absorption to products with revaluation at actual prices. This process calculates the incremental planned activity price to allocate all cost center debits. Orders are then revalued with incremental debits as shown in Figure 8, and the cost center receives the credits. Actual price calculation and revaluation let you post cost center variances to manufacturing orders.

08 001

Figure 8: Revaluation Settings in Version Configuration

Following revaluation, the cost center's actual balance is zero.

 9 Target Cost Analysis

You analyze cost center under/over absorption with the standard actual/plan cost center report S_ALR_87013611, which provides sufficient information for most companies to manage overhead costs.

More advanced functionality is available to analyze cost center balance, with target cost and variance analysis.

Target costs are continuously calculated and reported in real time. As shown in Figure 9, you view the cost center actual/target report with Transaction S_ALR_87013625.

10 001

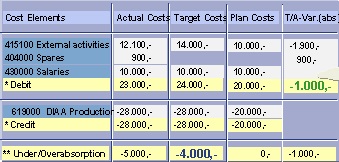

Figure 9: Actual/Target Cost Center Report

Actual and target costs increase with resource consumption, while plan costs remain constant. Plan costs are based on activity consumption, resulting in a credit of -20,000. Actual activity consumption is greater than planned, resulting in a credit of -28,000.

The target debit is more realistic than the plan debit because it increases variable costs due to increased activity consumption. There's only a 1,000 variance between actual and target in the Under/Overabsorption row in Figure 9, compared with a 5,000 variance between total actual and plan costs.

10 Cost Center Variance

You use variance calculation to allocate cost center over/under absorption into variance categories.

The difference between actual and target data causes variances. You can use automatic variance calculation to analyze the causes of cost center variances in detail. You may need to carry out a variance analysis if the target cost analysis doesn't provide enough information on the source of the variance or the responsible person. We examine the two steps involved in variance analysis.

A report highlighting input variance is shown in Figure 10.

10 001

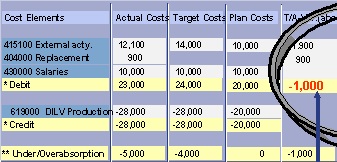

Figure 10: Input Variance Analysis-Cost Center Debits

Input variance is based on the Cost center actual debit - Target debit

In this example, the formula is 23,000 - 24,000 = (1,000)

11 Selection Variants

You create selection variants for flexible collective reporting and processing when working with master data selection.

Master data groups, such as cost center groups, are useful for collective processing and reporting, but selection variants offer a more flexible option.

This tip shows you how to create and use selection variants. You can make selection variants for cost elements, cost centers, activity types, statistical key figures, business processes, orders, or WBS elements. You enter the selection criteria once and save it in a selection variant.

Create a cost center selection variant with Transaction KM1V as shown in Figure 11.

11 001

Figure 11: Display Cost Centers Collectively

PART II Internal Orders

12 Internal Order Integrated Planning

There are several integrated planning indicators for internal orders on separate screens.

Little-known integrated planning checkboxes related to internal orders are in configuration and order master data. In this tip, we'll see their location and how they interact.

The version definition contains two integrated planning checkboxes you maintain via Transaction OKEQ, as shown in Figure 12.

13 001

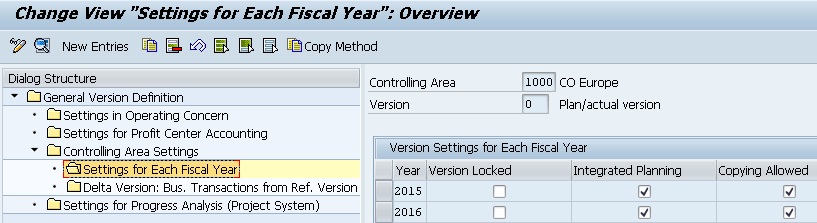

Figure 12: Controlling Settings for Each Fiscal Year

13 Internal Order Planning

Internal order planning allows you to enter plan costs, compare actual, and analyze variance. Orders for a short duration are not usually planned.

Cost planning is carried out on long-term internal orders. You can plan at an overall, annual, or detailed cost element level.

You maintain a planning profile with Transaction OKOS as shown in Figure 13.

11 001

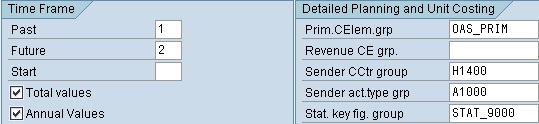

 Figure 13: Internal Order Planning Profile

The Past and Future Time Frame fields define how many years in the past and future you can enter planning data. The Total and Annual Values checkboxes control whether you can plan with total and annual data.

The Primary Cost Element group defines the primary cost elements you can plan against.

You assign the planning profile to an order type with Transaction KOAP.



14 Internal Order Budget with Availability Control

You use internal order budgeting to control actual expenditures by activating availability control.

An internal order budget represents approved funds. It is maintained at either an overall or annual level. You can activate availability control by issuing warnings or error messages based on tolerances. Let's look at how to create an internal order budget and how to activate availability control.

You maintain a budget profile with Transaction OKOB as shown in Figure 14.

12 001

Figure 14: Internal Order Budget Profile

Activation Type 1 indicates the automatic activation of availability control during budget allocation. If the Overall checkbox is selected, availability control checks against the overall budget. If the Overall checkbox is not selected, availability control checks against the annual budget. Availability control works with controlling area currency unless you select the Object Currency checkbox.

Meet SAP Controlling Conference Speakers

banner email 3



PART III Profit Center Accounting

15 Transfer Costs Automatically to the Profit Center

You can automatically or manually transfer plan data to Profit Center Accounting from other components.

Overhead costs for each profit center are typically planned in underlying cost centers. We look at the plan integration features for automatically transferring costs to the profit center.

You allow profit center online transfer and integrated planning with Transaction OKEQ, as shown in Figure 15.

13 001

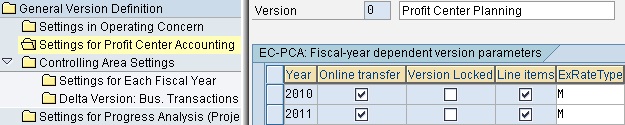

 Figure 15 General Version Definition - Online Transfer Checkbox

Select the Online transfer checkbox to allow cost center plan line items to transfer automatically to profit centers.

You also need to allow integrated planning for each Fiscal Year Version. To do this, double-click General Version Definition in Figure 15.1, select a Version, double-click Controlling Area Settings, choose a version, and then double-click Settings for Each Fiscal Year to display the screen in Figure 15.1.

13 002

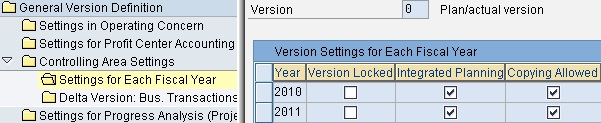

Figure 15.1 General Version Definition Integrated Planning Checkbox

Select the Integrated Planning checkbox to allow online transfer of cost center plan data automatically to profit centers per Fiscal Year. Line item documents keep a record of every planning change. Manually setting or deleting the Integrated Planning checkbox is possible only if no plan data exists.



16 Profit Center Assignment Monitor

You analyze the assignment of profit centers to master data and objects with the Profit Center Assignment Monitor.

The Assignment Monitor helps you check which objects aren't assigned to a profit center to reduce postings to the dummy profit center. We follow a material master example. The profit center in the material master is copied to all financial documents generated by inventory movements.

You run the assignment monitor with Transaction 1KE4 to display the screen in Figure 16. Click on the Assignment monitor in the menu bar to display a list of objects that contain profit centers. Select Assignment Monitor - Material - Nonassigned from the menu bar to display a list of unassigned materials.

14 001

 Figure 16: Assignment Monitor

Type in the material type and execute to display the screen shown in Figure 16-1.

14 002

Figure 16-1 Unassigned Material Numbers

You can drill down directly to each material master. There are two reasons why a material master may not be assigned to a profit center:

  • The material master views containing the profit center are not created
  • The material master profit center field is not mandatory

To make the profit center field mandatory, determine which field selection group it is assigned to with Transaction OMSR.

PART IV Product Cost Planning

17 Standard or Moving Average Price

Companies must choose whether to use standard or moving average price control for inventory valuation. While you have complete flexibility in setting this up, here are some best practices.

You can change the Price control with Transaction MM02 as shown in Figure 17.

15 001

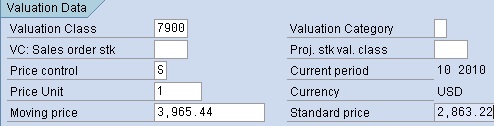

Figure 17 Costing 2 View Valuation Data

SAP recommends standard price control for all semi-finished and finished products since problems with moving average price can occur if you consume more assemblies than you produce during a period. Insufficient stock coverage may be present to absorb differences when settling production orders at period end, leading to an unrealistic moving average price. Please read more details on stock coverage and moving average prices in SAP Note 81682 and our SAP Material Ledger blog.

SAP also recommends using a moving average price for purchased materials. Inventory is revalued for every good, and invoice receipts that are priced differently from the moving average price. While this provides the advantage of real-time inventory valuation, it has the disadvantage of not providing purchase price difference PPV postings for analysis.



18 View Historical Moving Average Price

When you have a moving average price control for inventory valuation, finding historical values for the moving average price is often requested. You can view historical prices at a summary level and calculate them in detail.

Stock and valuation fields relating to previous or earlier periods are stored in the history table MBEWH, separate from table MBEW. History tables contain only one entry for each period. An entry is only created if stock or valuation-relevant data changes occur in the current period.

You can display the data in table MBEWH with Transaction SE16N as shown in Figure 18.

16 001

Figure 18: Material Valuation History Table

The history table entries displayed for periods 1 and 3 indicate:

  • There were no inventory movements during period 3
  • The valuation data for period 2 is the same as for period 1
  • Even though the price did not change in period 3, an entry was made in the history table due to goods movements in period 4

 You can verify each bullet point by displaying a list of goods movements with Transaction MB51.

19 Changing Material Prices Manually

Material prices are changed automatically with one of these three methods:

  1. Standard prices are updated by releasing cost estimates during a costing run
  2. Moving average prices are updated during goods and invoice receipt if the purchase order or invoice price varies from the moving average price.
  3. During the Material Ledger period-end processing.
